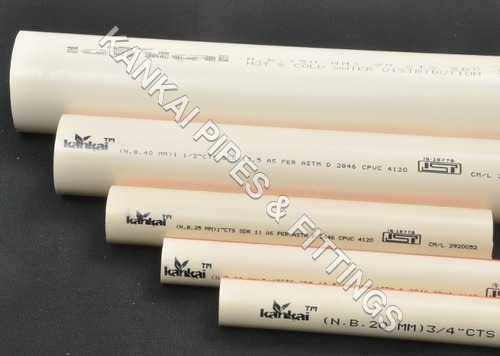

Our quality concerned enterprise has been engrossed in providing supreme grade 15mm CPVC Pipes since 2010. These are manufactured by a troop of dedicated professionals using premium quality chlorinated polyvinyl chloride at our sophisticated premises. The offered pipes are widely used for various industries for metal finishing, pulp and paper for transporting both hot and cold water. Apart from this the provided 15mm CPVC Pipes is available at economical prices for our valued patrons.
Features:
- Low friction loss
- No biological or fungal growth
- Weathering proof
- Abrasion resistance
Specification:
- Tensile: 560 Kg/cm2 ,
- Flexural: 1057 Kg/cm2 ,
- Compressive: 707 KG/cm2
- Low Thermal Conductivity: 0.137 W/m/K
- Low Thermal Expansion: 1.95x10-5 m/m/K
- Packaging: Standard
- Delivery: Within 7 Days After Confirmation
- Payment Terms: 50% Advance and 50% Before Dispatch
Technical Specifications:
|
Nominal Pipe Size |
Outer Diameter (mm) |
SDR 11 |
SDR 13.5 |
||||||||
|
Wall Thickness (mm) |
Working Pressure at |
Wall Thickness (mm) |
Working Pressure at |
||||||||
|
23' c |
82' c |
23' c |
82' c |
||||||||
|
Inch |
mm |
Avarange |
Tolerance |
Min. |
Tolerance |
Kg/cm2 |
Min. |
Tolerance |
Kg/cm2 |
||
|
0.50" |
15 |
0.625 (15.90) |
0 |
0.07 |
0.02 |
28.1 |
7.0 |
0.06 |
0.02 |
22.6 |
5.6 |
|
0.01 |
1.73 |
0.51 |
1.4 |
0.51 |
|||||||
|
0.75" |
20 |
0.88 |
0 |
0.08 |
0.02 |
28.1 |
7.0 |
0.07 |
0.02 |
22.6 |
5.6 |
|
22.2 |
0.01 |
2.03 |
0.51 |
1.65 |
0.51 |
||||||
|
1.00" |
25 |
1.13 |
0 |
0.1 |
0.02 |
28.1 |
7.0 |
0.08 |
0.02 |
22.6 |
5.6 |
|
28.6 |
0.01 |
2.59 |
0.51 |
2.12 |
0.51 |
||||||
|
1.25" |
32 |
1.38 |
0 |
0.13 |
0.02 |
28.1 |
7.0 |
0.1 |
0.2 |
22.6 |
5.6 |
|
34.9 |
0.01 |
3.18 |
0.51 |
2.59 |
0.51 |
||||||
|
1.50" |
40 |
1.63 |
0 |
0.15 |
0.02 |
28.1 |
7.0 |
0.12 |
0.02 |
22.6 |
5.6 |
|
41.3 |
0.01 |
3.76 |
0.51 |
3.06 |
0.51 |
||||||
|
2.00" |
50 |
2.13 |
0 |
0.19 |
0.02 |
28.1 |
7.0 |
0.16 |
0.02 |
22.6 |
5.6 |
|
54 |
0.01 |
4.9 |
0.58 |
4.00 |
0.58 |
||||||
|
Technical Specification Are Subject to change without prior notice* |
|||||||||||
